Inertial supercharger system
for URAL/DNEPR motorcycle

Inertial supercharger system made by IMZ. This system may save up to 18% gas in urban cycle and 12% off-road. Rise power and acceleration bike's engine without downer reliability. System forbid condense fuel-air in carb and intake port. It use flow's inertia in left cylinder for right cylinder and inversely.

On 1100 RPM power with system up on 4 hp, on 2000 RPM power up on 3 ph than without system. On more high RPM powers is equal. See graph.

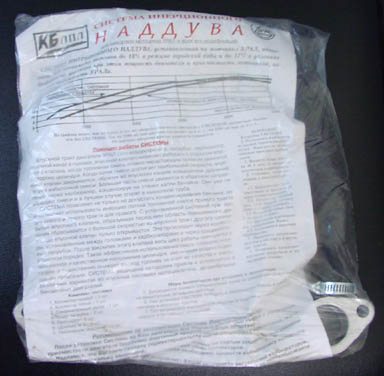

Include:

Left collector
Right collector
Hose pipe
Two collars
Two gaskets
Four studs

How install?

We get many questions about install this system. Install easy. We install it to our friend's Ural bike for simple. We take one half hour for it. You need two 13-14mm spanner and hammer.
Step 1.Undo two nut and dismount carburettor. Save gasket!	Step 2.Lock a nuts on stud use two spanner (We have only one spanner and use flat-nosed pilers)
Step 3. When you lock nuts, you can dismount old short studs.	Step 4. Mount new long studs. Attention:Thread pitch different in one and two side of stud. You must install side with big thread pitch into head.
Step 5. Mount collector on new studs. You can light bang by hammer via wood's billet	Step 6. Set new gasket.
Step 7. Fix hosepipe via yoke.	Step 8.Mount carburettor into collector
Step 9. Cross hosepipe between alternator and air's filter. Mount second collector into other side.	Step10. When you mount both collectors and start - engine pick up speed. You must adjust idle.Use two screw - see red cursors.
