Pistons and rings set (group B, normal repair size, spherical top, fuel 92 octane) URAL
Pistons and rings set (group B, normal repair size, spherical top, fuel 92 octane) URAL
Pistons and rings set (group B, normal repair size, spherical top, fuel 92 octane) URAL
Pistons and rings set (group B, normal repair size, spherical top, fuel 92 octane) URAL
Pistons and rings set (group B, normal repair size, spherical top, fuel 92 octane) URAL
Pistons and rings set (group B, normal repair size, spherical top, fuel 92 octane) URAL
$
69.99
Add quantity:
We accept payments by:
Average delivery time to
United States
is
18
days.

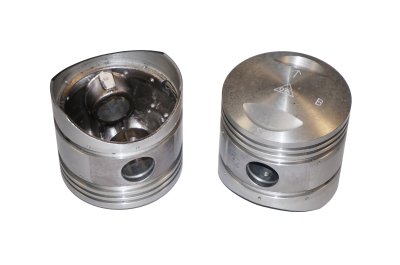

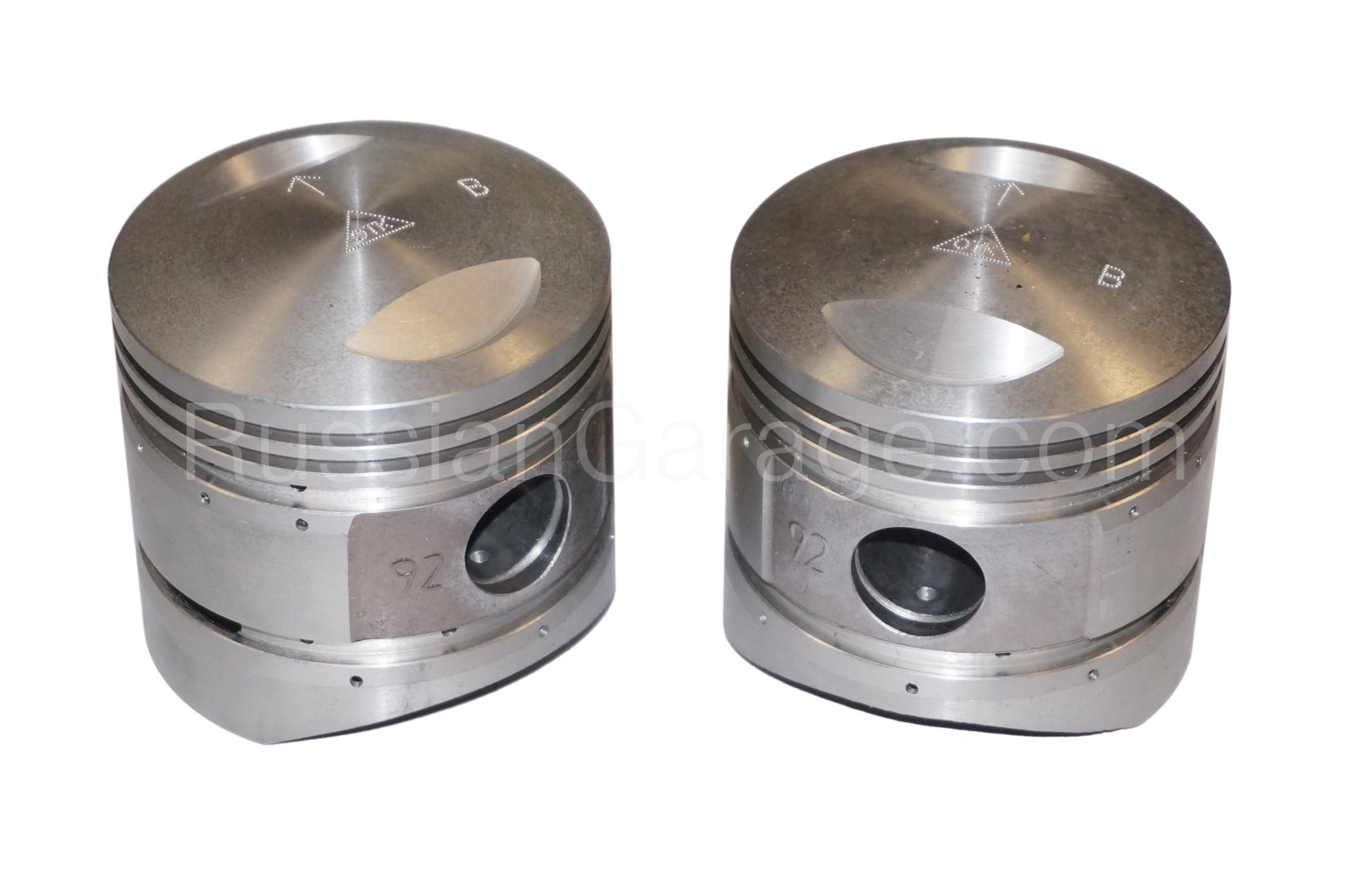

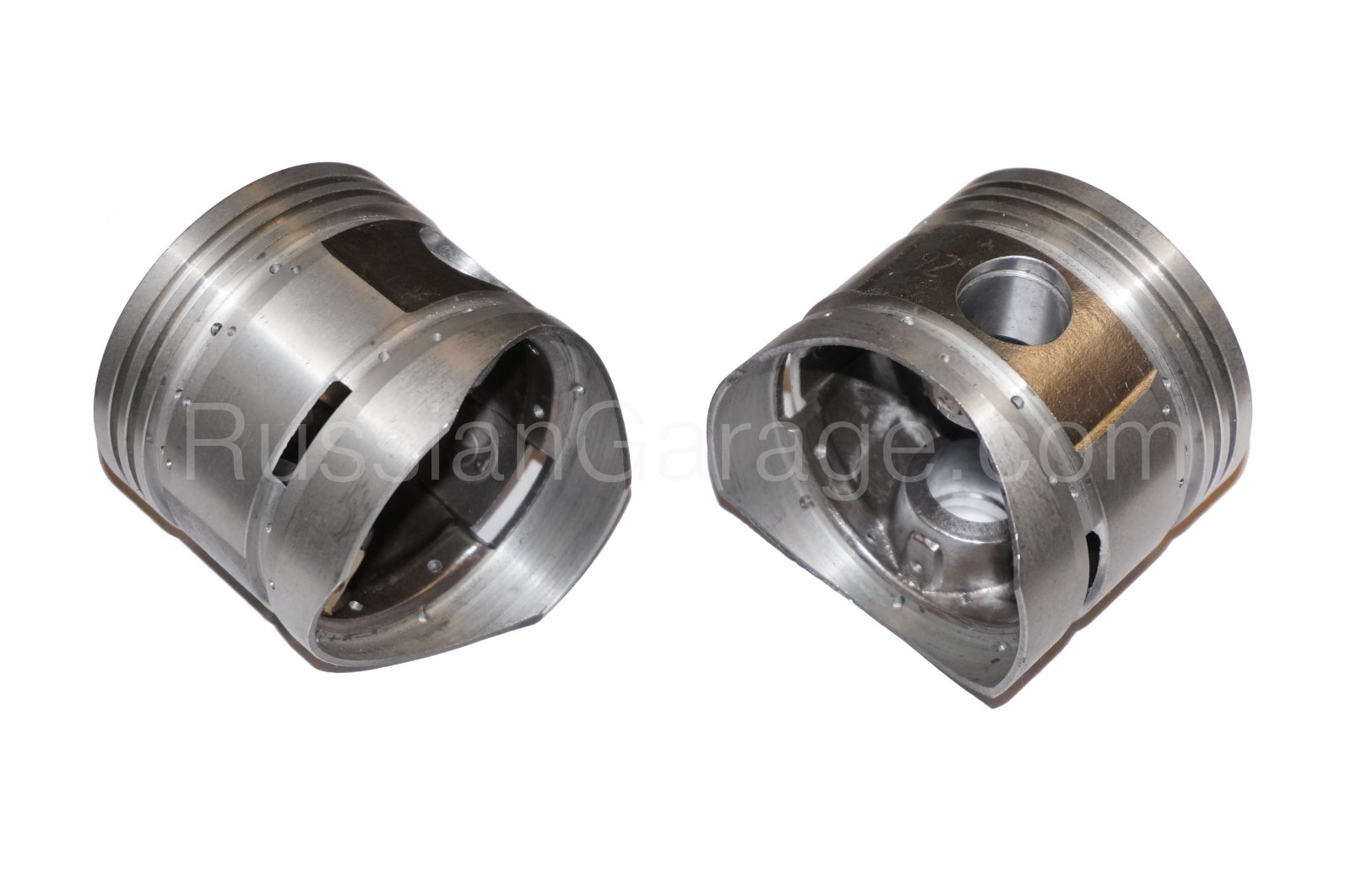

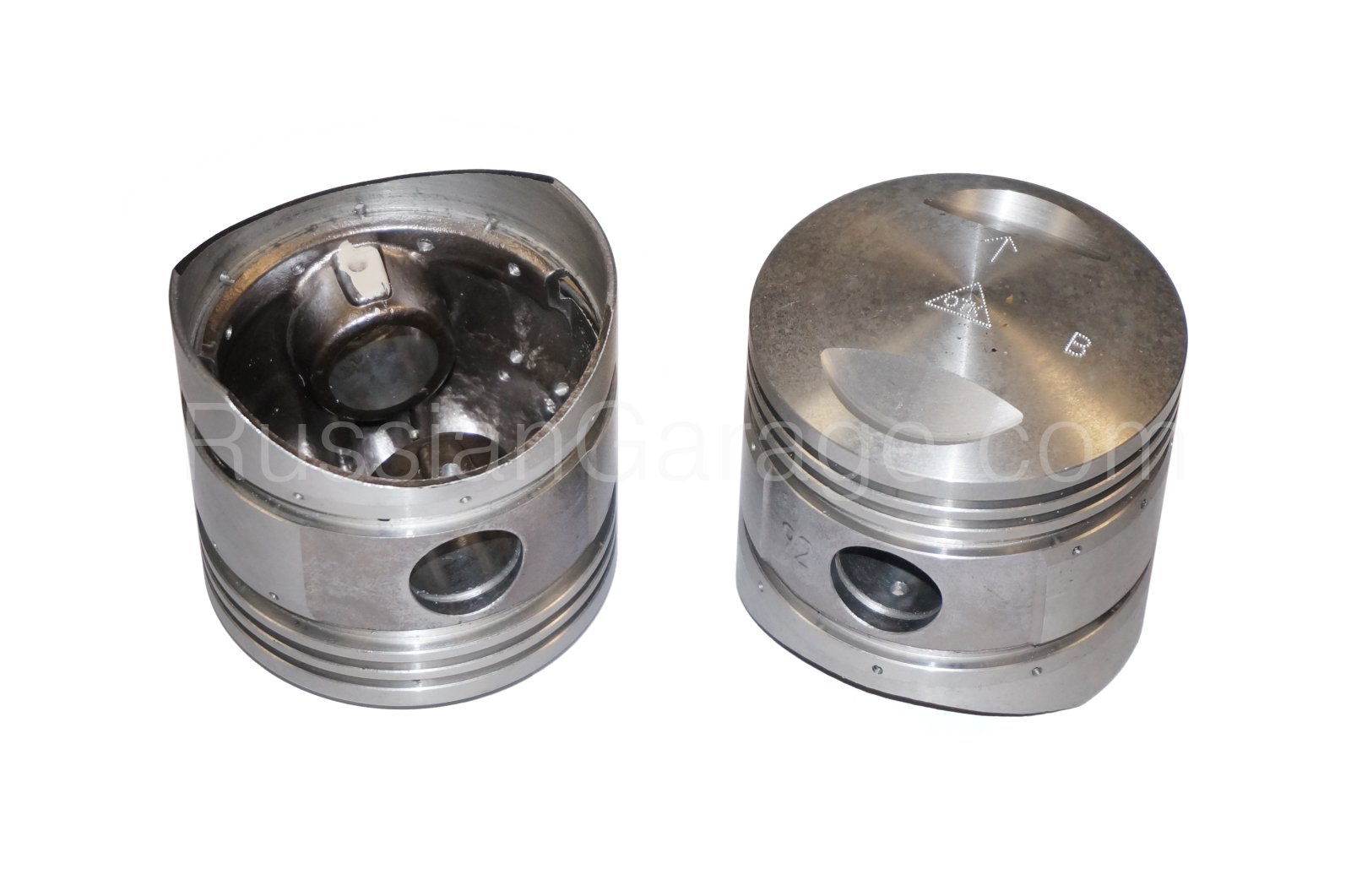

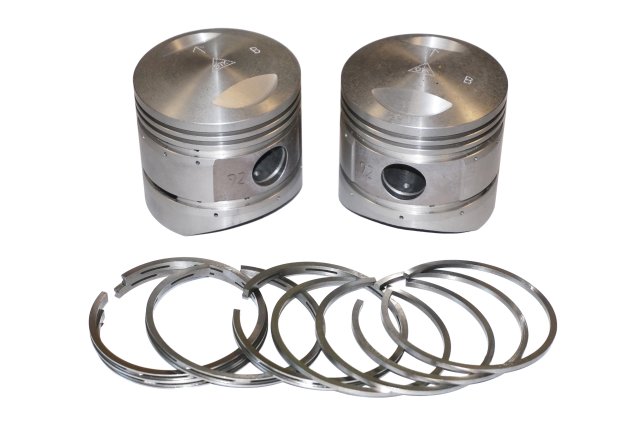

Set of spherical top pistons (group B, normal repair size for cylinder bore diameter 78.01-78.02mm) for high-octane gasoline (92 octane rating) for URAL motorcycle. Comes with a set of piston rings (4 compression rings and 4 oil scraper rings). NEW!
Cylinder and piston size
Dimensional index group
Cylinder bore diameter, mm
Diameter of piston, mm
Piston part number
NORMAL
A
B
C
78.00 - 78.01
78.01 - 78.02
78.02 - 78.03
77.91 - 77.92
77.92 - 77.93
77.93 - 77.94
6201237
1st repair
A1
B1
C1
78.20 - 78.21
78.21 - 78.22
78.22 - 78.23
78.11 - 78.12
78.12 - 78.13
78.13 - 78.14
6201237-P1
2nd repair
A2
B2
C2
78.50 - 78.51
78.51 - 78.52
78.52 - 78.53
78.41 - 78.42
78.42 - 78.43
78.43 - 78.44
6201237-P2
3rd repair
A3
B3
C3
79.00 - 79.01
79.01 - 79.02
79.02 - 79.03
78.91 - 78.92
78.92 - 78.93
78.93 - 78.94
6201237-P3
